Result Report November (1)

1. TODOs

Compare autoregressive vs non-autoregressive
Rewrite dataloader for more input parameters (load forecast)
Explore more input parameters (load forecast)
Quantile Regression sampling fix
Quantile Regression exploration
Plots with good scaling (y-axis)
Some days in load forecast are missing, remove samples from dataset (Implemented a skip in the NRVDataset)
Quantile Regression nakijken
Test scores voor 96 values
Andere modellen (LSTM?)
Non autoregressive Quantile Regression
Fix debug plots for quantile regression -> predict quantiles and look if true value is below a quantile, if so 1 else 0 and average these over all samples
Full day debug plots for quantile regression
CPRS Metrics
Time as input parameter:
Probabilistic Baseline -> Quantiles on Training Data -> Breedte bekijken -> Gebruiken voor CPRS en plotjes
Day-ahead implicit net position
Faster sampling for quantile regression
Quantile plots for other model (Linear, GRU) (Check if better)
Check example plots to see if metrics correspond with what seen on plots
Time step (96 values) to embedding layer
Mean of nrv per time step plotten (done for probabilistic baseline)
Convert back to MW on plots
Background model training

2. Autoregressive vs Non-Autoregressive

Training data: 2015 - 2022
Batch_size: 1024
Learning_rate: 0.0003
Early_stopping: 10

2.1 Linear Model

Comparison: Link

	Autoregressive	Non-Autoregressive
Experiment (ClearML)	Link	Link
Train-MAE	68.0202865600586	94.83179473876953
Train-MSE	7861.2197265625	15977.8759765625
Test-MAE	78.05316925048828	104.11575317382812
Test-MSE	10882.755859375	21145.583984375

2.2 Non Linear Model

Hidden layers: 1
Hidden units: 512

Comparison: Link

	Autoregressive	Non-Autoregressive
Experiment (ClearML)	Link	Link
Train-MAE	66.78179931640625	94.52633666992188
Train-MSE	7507.53955078125	15835.671875
Test-MAE	77.63729095458984	104.07229614257812
Test-MSE	10789.544921875	21090.9765625

Also tried with 3 hidden layers for Non-Autoregressive model, test results didn't improve.

3. Quantile Regression

3.1 Sampling Fix

The model outputs values for the quantiles it is trained on. For example, the quantiles [0.025, 0.05, 0.1, 0.15, 0.85, 0.9, 0.95, 0.975] can be used. The values outputted by the model are like: [-0.23013, -0.19831, -0.15217, -0.13654, 0.011687, 0.015129, 0.043187, 0.047704]. Plotting these as CDF:

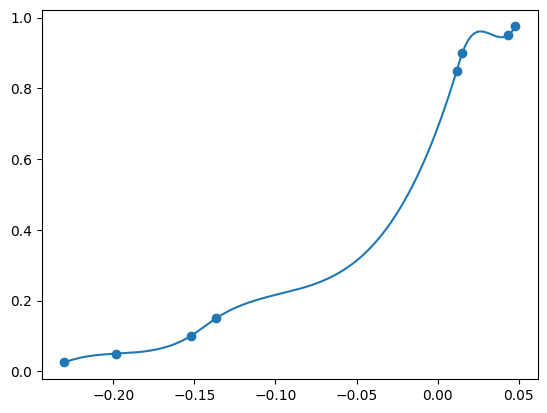

Plotted output values with cubic interpolation

Samling from a uniform distribution, we can convert it to our distribution by using the inverse CDF. In python we can interpolate immediately by switching the x and y axis. This gives us the following code:

interp1d(quantiles, output_values, kind='quadratic', bounds_error=False, fill_value="extrapolate")

The mean of x amount of samples can be calculated.

3.2 Exploration

3.2.1 Linear Model

Learning Rate: 0.0003
Batch Size: 1024
Early Stopping: 10
Trining Data: 2015 - 2022

Quantiles	Train-MAE	Train-MSE	Test-MAE	Test-MSE
0.025, 0.1, 0.2, 0.3, 0.5, 0.6, 0.8, 0.85, 0.9, 0.975	68.07254628777868	7872.668472187121	78.11135584669907	10903.793883789216
0.025, 0.1, 0.15, 0.2, 0.5, 0.8, 0.85, 0.9, 0.975	68.0732244289865	7873.212834241974	78.1143230666738	10907.350919114313
0.025, 0.05, 0.1, 0.15, 0.85, 0.9, 0.95, 0.975	68.2798014428824	7936.7644114273935	78.50109206637464	11005.706457116454
0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9	68.06139224378171	7871.467571921973	78.10843456751378	10904.55519059502
0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8, 0.85, 0.9	68.0350635204691	7868.661882749334	78.1139478264609	10905.562798801011
0.1, 0.2, 0.3, 0.35, 0.4, 0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.8, 0.9	68.03191172170285	7868.483061240721	78.13204232055722	10908.837301340453

These are all very close

3.2.2 Non Linear Model

Learning Rate: 0.0003
Batch Size: 1024
Early Stopping: 10
Trining Data: 2015 - 2022
Hidden Layers: 3
Hidden Units: 1024

Quantiles	Train-MAE	Train-MSE	Test-MAE	Test-MSE
0.1, 0.2, 0.3, 0.35, 0.4, 0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.8, 0.9	65.6542529596313	7392.5142575554955	77.55779692831604	10769.161724849037
0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9	65.68495924348356	7326.2239225611975	77.62433888969542	10789.003223366473

Also tried one with dropout of 0.3, results are better. This needs to be tested more (hyperparameter tuning is not the focus here):

Quantiles	Train-MAE	Train-MSE	Test-MAE	Test-MSE
0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9	63.710736942371994	6988.6436956508105	77.29499496466444	10706.484005597813

More input parameters

Non-Autoregressive

Learning Rate: 0.0003
Batch Size: 1024
Early Stopping: 15
Trining Data: 2015 - 2022
Hidden Layers: 3
Hidden Units: 1024

Input Parameters	Experiment	Train-MAE	Train-MSE	Test-MAE	Test-MSE
NRV History	Link	94.40104675292969	15815.435546875	104.87157440185547	21358.115234375
NRV History + Load History	Link	92.76568603515625	15250.294921875	104.78298950195312	21043.908203125
NRV History + Load History + Load Forecast	Link	92.92375946044922	15294.857421875	104.52192687988281	20994.251953125

Quantile Regression Debugging

Link

Scores on full day prediction

Only history NRV as features
